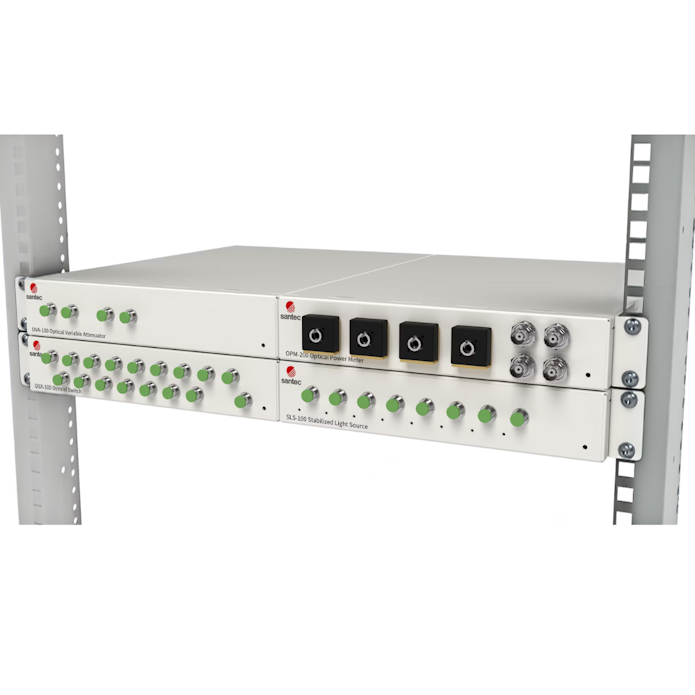

Say goodbye to half empty and expensive mainframes which waste your rack or benchtop space! The XCS features a chassis modular architecture for easy user reconfiguration and customization of the test platform. It offers various form factors, from the compact 1U half rack for seamless expansion of existing systems, to full rack sizes (1U, 2U, 3U or 6U) capable of accommodating multiple modules configured during ordering. |
- XCS-100
Expandable Chassis System
- FP, DFB, LED and SLED sources
- Sources, switches and attenuators available in SM, PM and MM
- Ultra-low loss switches (< 0.5 dB) and attenuators (< 1.2 dB)
- 2mm InGaAs and integrating sphere free-space detectors










Description
Revolutionize your hardware configurations with the XCS Expandable Chassis System, a cutting-edge solution designed to adapt seamlessly to the evolving needs of your optical testing environment. Select and combine sources, attenuators, switches, power meters and more. The innovative chassis modular system allows users to customize, expand, and future-proof their setups with unparalleled flexibility.

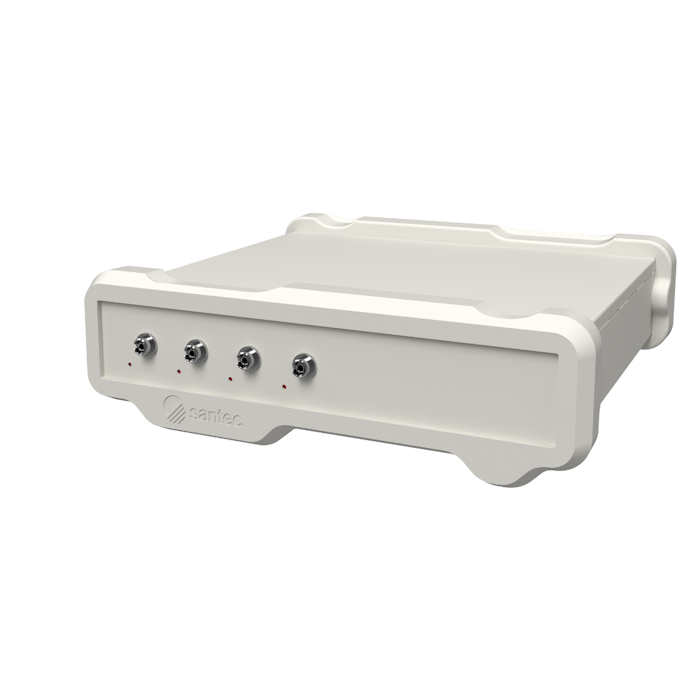

The compact 1U half rack form factor lets you customize and easily swap modules in the lab while integrated systems with the same hardware and performance can be combined when moving to a streamlined production environment.
With almost endless available configurations, talk to one of our experts to help design the system best suited to your needs.
Choose from a wide range of fixed wavelength sources:
|
Based on the same technology as the high-performance OVA-100, the XCS lets you integrate optical variable attenuators for precise and repeatable power control. With SM or PM fiber, you can choose between the standard 60 dB or the long 100 dB attenuation ranges. MM and custom core sizes are also available as are power monitoring options. |
Choose between ultra-low loss (< 0.5 dB) optomechanical or fast (< 10 ms) MEMS optical switches. Available in SM, PM or MM with 1 or 2 commons and up to 400 channels. Custom core sizes, wavelengths and configurations available upon request. |
Utilizing the capabilities of the OPM-200, Santec’s latest generation power meter, the XCS can offer different free-space detectors (2mm InGaAs or integrating sphere) able to cover a power range from 30 to -80 dBm and wavelength from 840 to 1700 nm. With dedicated analog outputs and bandwidth up to 10 kHz, the XCS power meters are ideal for optical alignment. |
