描述

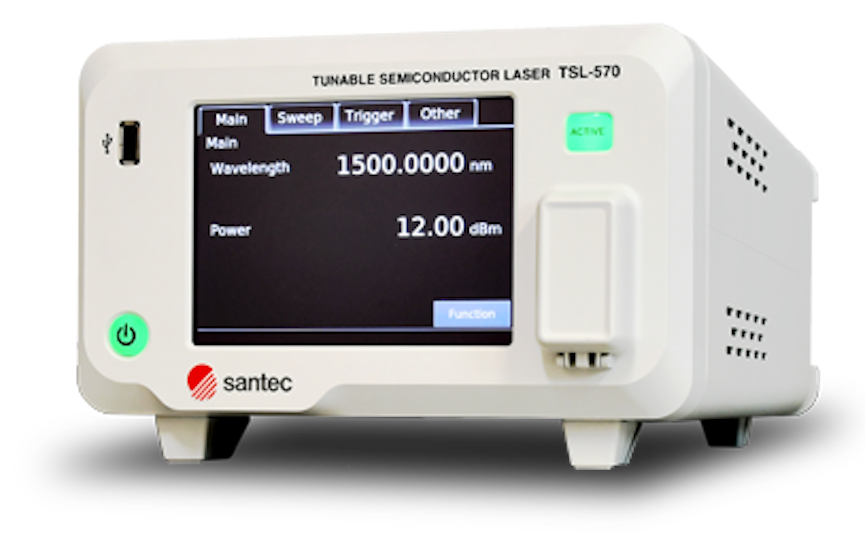

Santec 的全新 TSL-570 充分利用了 Santec 在可调谐激光器制造领域 33 年的经验。TSL-570 是一种高性能可调谐激光器,调谐范围广,输出兼具高功率和高信噪比。它采用新型光腔设计,速度控制精确,最高可达 200 nm/s,分辨率和精确度达到亚微米级。
可调谐激光器广泛应用于光子学、光学元件表征、光子集成电路测试、量子光子学、光谱学和传感器。Santec 的 TSL-570 是一款高规格、全功能仪器,适合所有应用。它有一个简单易用的触摸面板显示屏,以及用于远程控制的以太网、GPIB 和 USB 接口。网络唤醒(WoL)功能为远程安装提供了便利。产品型号覆盖 1240 至 1680 nm,输出功率高达 20 mW。
新型密封激光腔无模式跳变,在每个波长都能提供稳定的输出。它具有 0.1 pm 的分辨率、亚皮米级的精度和市场领先的 90 dB/0.1 nm 超低自发源发射水平。TSL-570 与 Santec 的光功率计(MPM系列)、光开关(OSU 系列)和偏振控制器(PCU 系列)无缝集成,为波长相关损耗 (WDL) 和偏振相关损耗 (PDL) 测量(扫频测试系统)提供全套标准解决方案。
特性
1. 高输出光功率:
+ 13 dBm
2. 高信噪比:
90 dB/0.1 nm
3. 高波长精度:
- Type A: ±20 pm wavelength accuracy
- Type C: ±5 pm wavelength accuracy
- Type P: ±2 pm wavelength accuracy
4. 宽调谐范围,1240-1680nm,多种波长选择
- Ext O-Band 1240 to 1380 nm
- O-Band * 1260 to 1360 nm
- ES-Band * 1355 to 1485 nm
- Ext ES-Band 1355 to 1505 nm
- CL-Band * 1500 to 1630 nm
- SCL-Band 1480 to 1640 nm
- U-Band * 1560 to 1680 nm
* 暂不适用 Type P
典型数据
Optical Spectrum
Wavelength vs. Output power
Wavelength Accuracy
应用
- Optical characterization of components and modules:
- Tunable filters, interleavers, Fiber Bragg gratings, couplers, splitters, isolators, switches, etc
- WSS and wavelength blockers
- DWDM components - Silicon photonic waveguide characterization, including micro-cavity ring resonators
- Spectroscopy
- Interferometry
