光功率计对比
Our Optical power meters (OPM) are designed for different use cases. Compare the models with this selection guide and discover the perfect fit for your application.
Compare OPM models
Get help choosing. Chat with a Specialist >
|
Model |
OPM-150 |

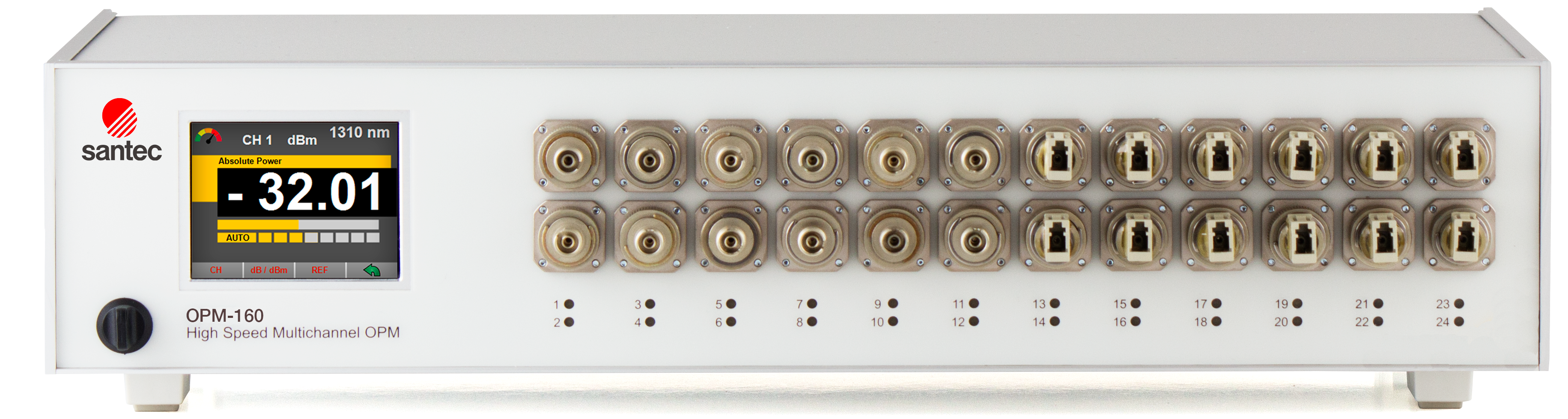

OPM-160 |
OPM-200 |
OPM-230 |
|---|---|---|---|---|
|
Multichannel |
High-speed & Multichannel |
High Performance |
Wide Gain Range |
|
 |
 |
 |
 |
|
|
Datasheets |
||||
|
InGaAs Detector (850-1650 nm) |
✔️ |
✔️ |
✔️ |
✔️ |
|
Silicon Detector (400-1100 nm) |
✔️ |
✔️ |
|
|
|
Power Range (dBm) |
1mm InGaAs 6 to -72 dBm
3mm InGaAs 3 to -72 dBm
5mm InGaAs 0 to -65 dBm
10mm InGaAs 0 to -55 dBm
2mm HP InGaAs 27 to -45 dBm
3mm Si 0 to -65 dBm
10mm Si 3 to -50 dBm |
1mm InGaAs 6 to -72 dBm 2mm HP InGaAs 24 to -40 dBm 3mm Si 3 to -65 dBm |
2mm InGaAs 6 to -80 dBm Integrating sphere 30 to -50 dBm |
2mm InGaAs 10 to -75 dBm |
|
70+ dB Gain Stage |
|
|
|
✔️ |
|
USB |
✔️ |
✔️ |
✔️ |
✔️ |
|
Touch Screen |
✔️ |
✔️ |
✔️ |
✔️ |
|
Averaging Time |
10-30 ms |
8 μs |
50 μs |
50 μs |
|
Max channel count |
24 |
24 |
4 |
4 |
|
Ethernet |
✔️ |
|
✔️ |
✔️ |
|
Trigger |
|
|
✔️ |
✔️ |
|
Analog output |
|
|
✔️ |
✔️ |
|
|
Compare OPM models
Get help choosing. Chat with a Specialist >
|
Features |
|
|---|---|
|

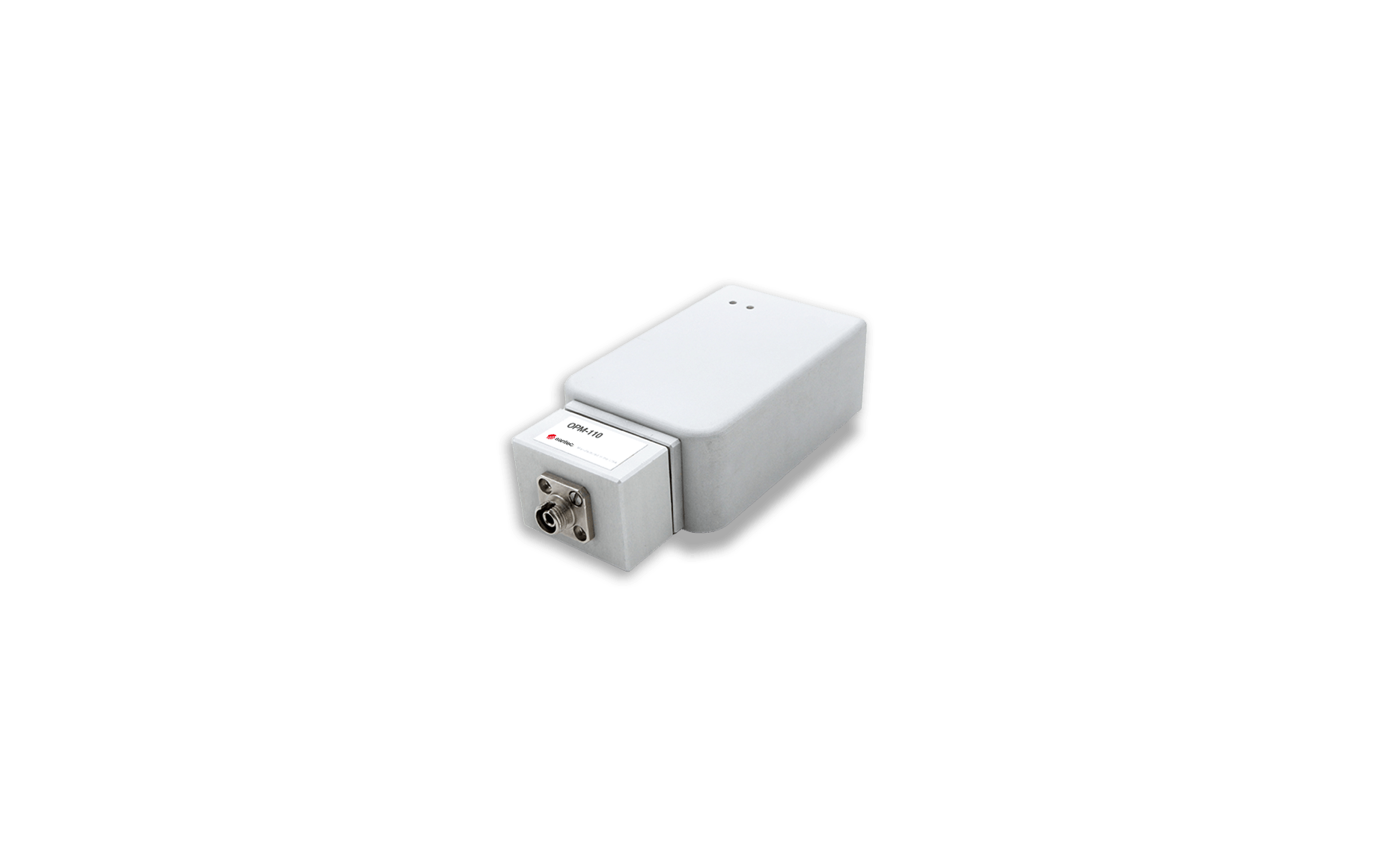

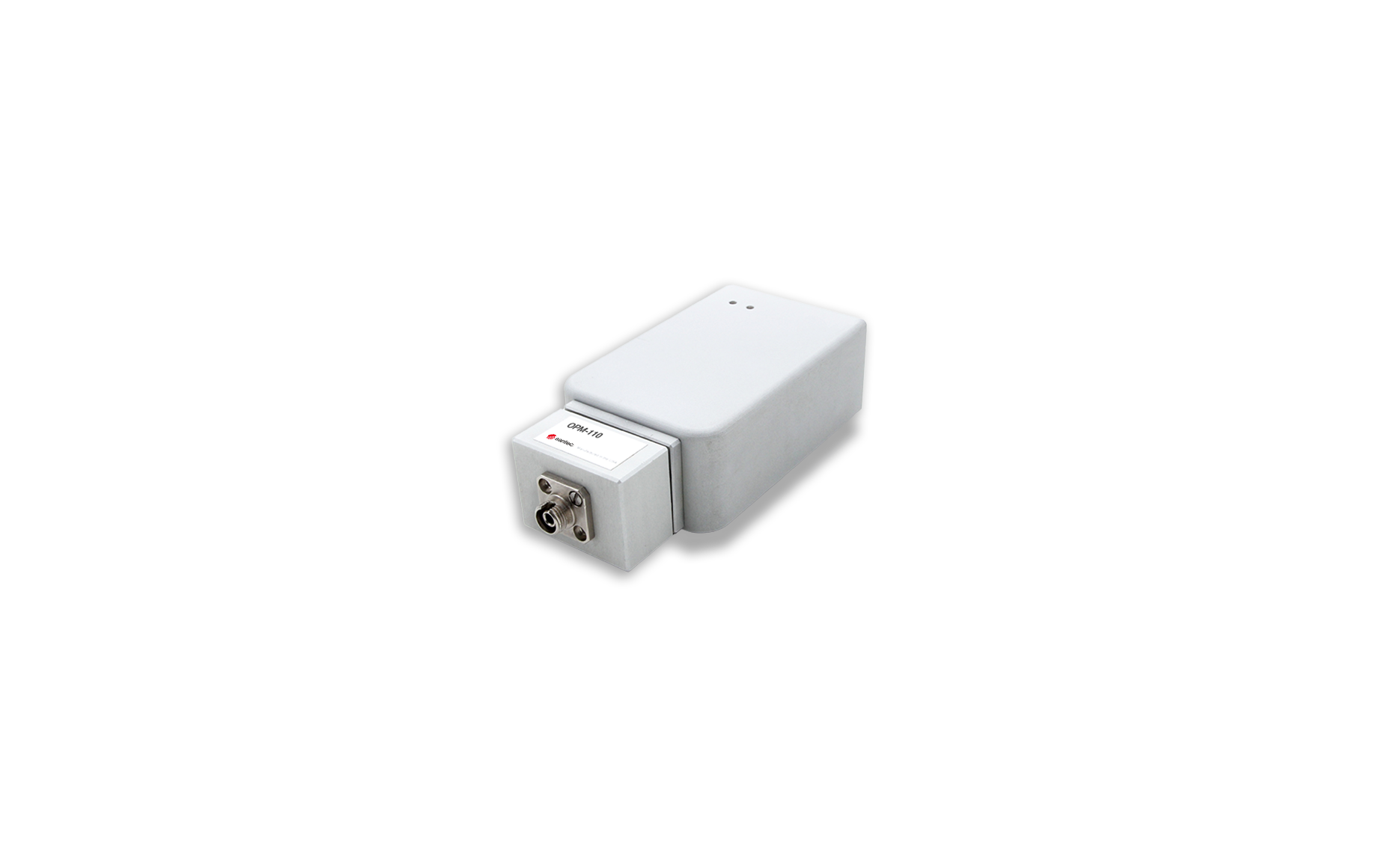

InGaAs Detector (850-1650 nm) OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
✔️ ✔️ ✔️ ✔️ ✔️ |
|
Silicon Detector (400-1100 nm) OPM-110 OPM-150 OPM-160 |
✔️ ✔️ ✔️ |
|
Power Range OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
(6 to -72 dBm) (6 to -72 dBm) (6 to -72 dBm) (6 to -80 dBm) (10 to -75 dBm) |
|
70+ dB Gain Stage OPM-230 |
✔️ |
|
USB
OPM-150 OPM-160 OPM-200 OPM-230 |
✔️ ✔️ ✔️ ✔️ ✔️ |
|
Touch Screen OPM-150 OPM-160 OPM-200 OPM-230 |
✔️ ✔️ ✔️ |
|
Averaging Time
OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
50ms 10-30ms 8 μs 50 μs |
|
Ethernet OPM-150 OPM-200 |
✔️ ✔️ ✔️ |
|
Max channel count OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
1 24 24 4 4 |
|
Trigger OPM-200 OPM-230 |
✔️ ✔️ |
|
Analog output OPM-200 OPM-230 |
✔️ ✔️ |
