Compare OPM models
Get help choosing. Chat with a Specialist >
|
Model |

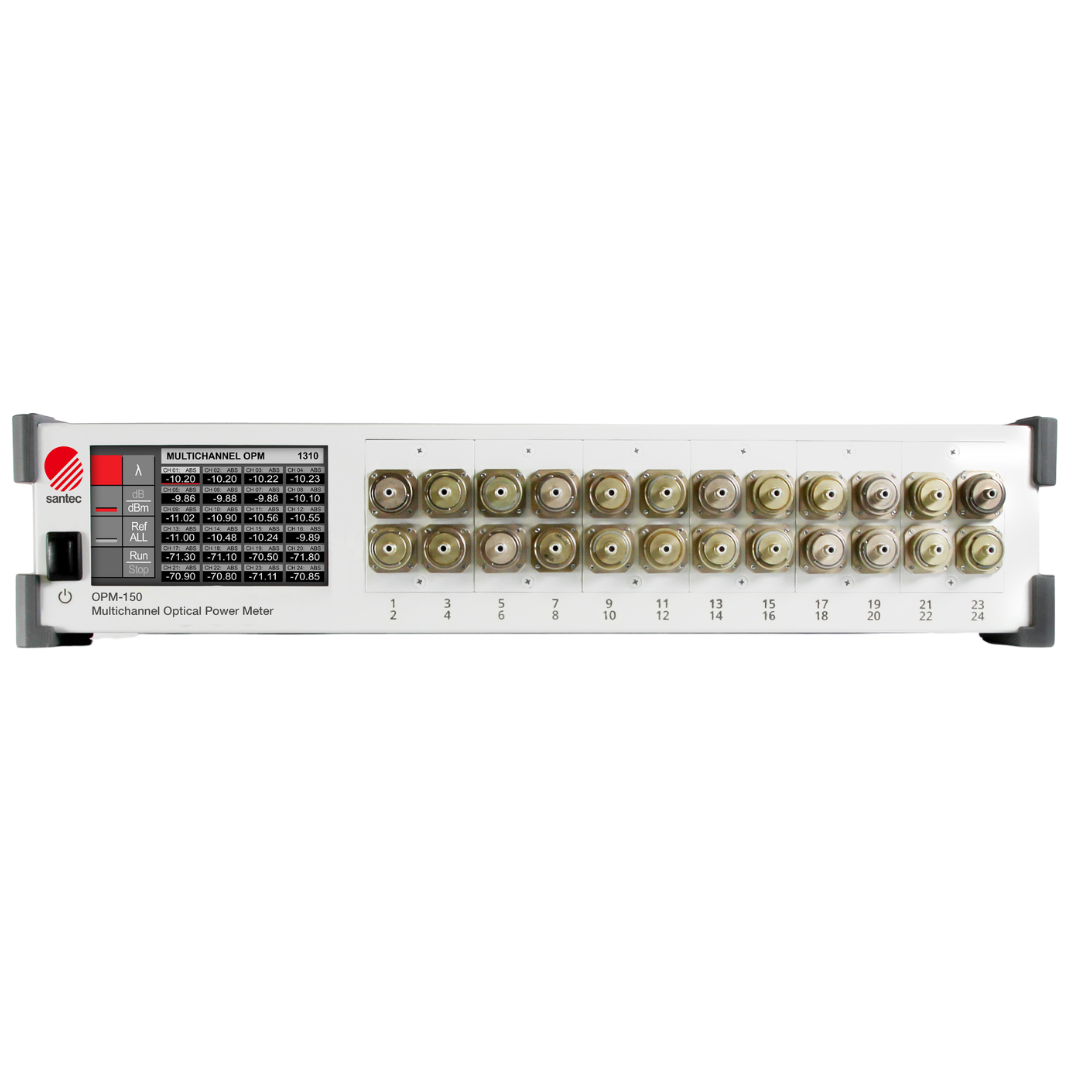

OPM-150 |

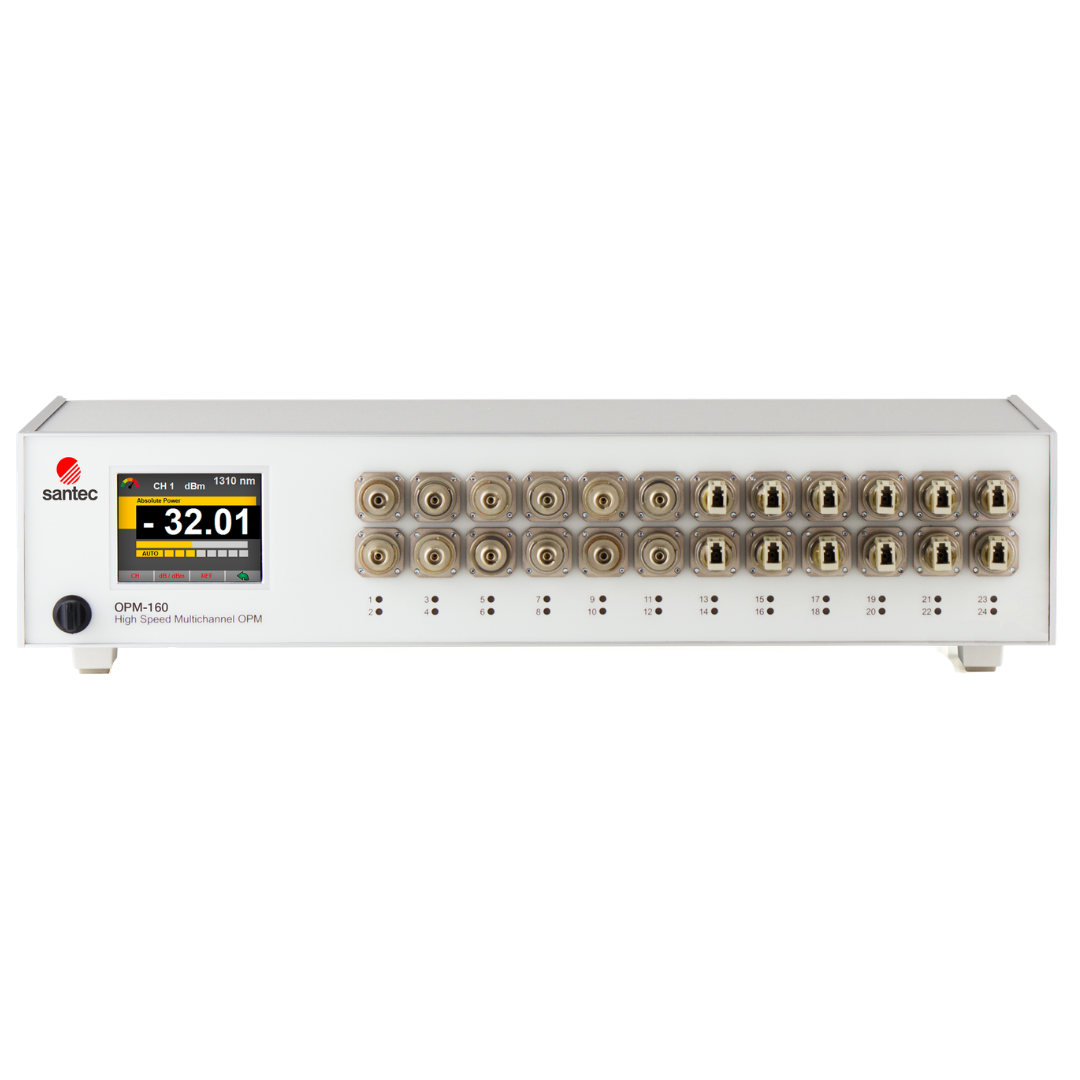

OPM-160 |

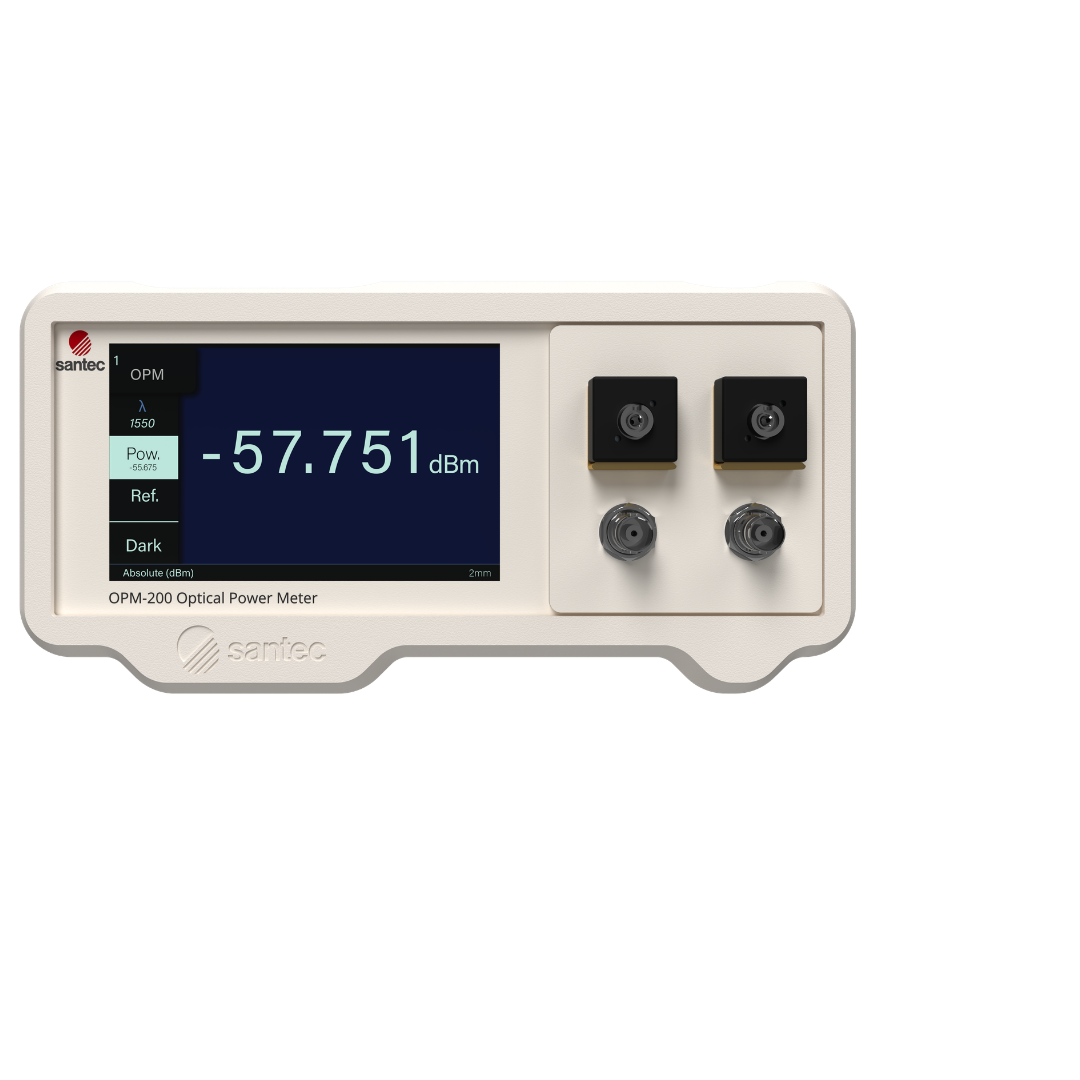

OPM-200 |

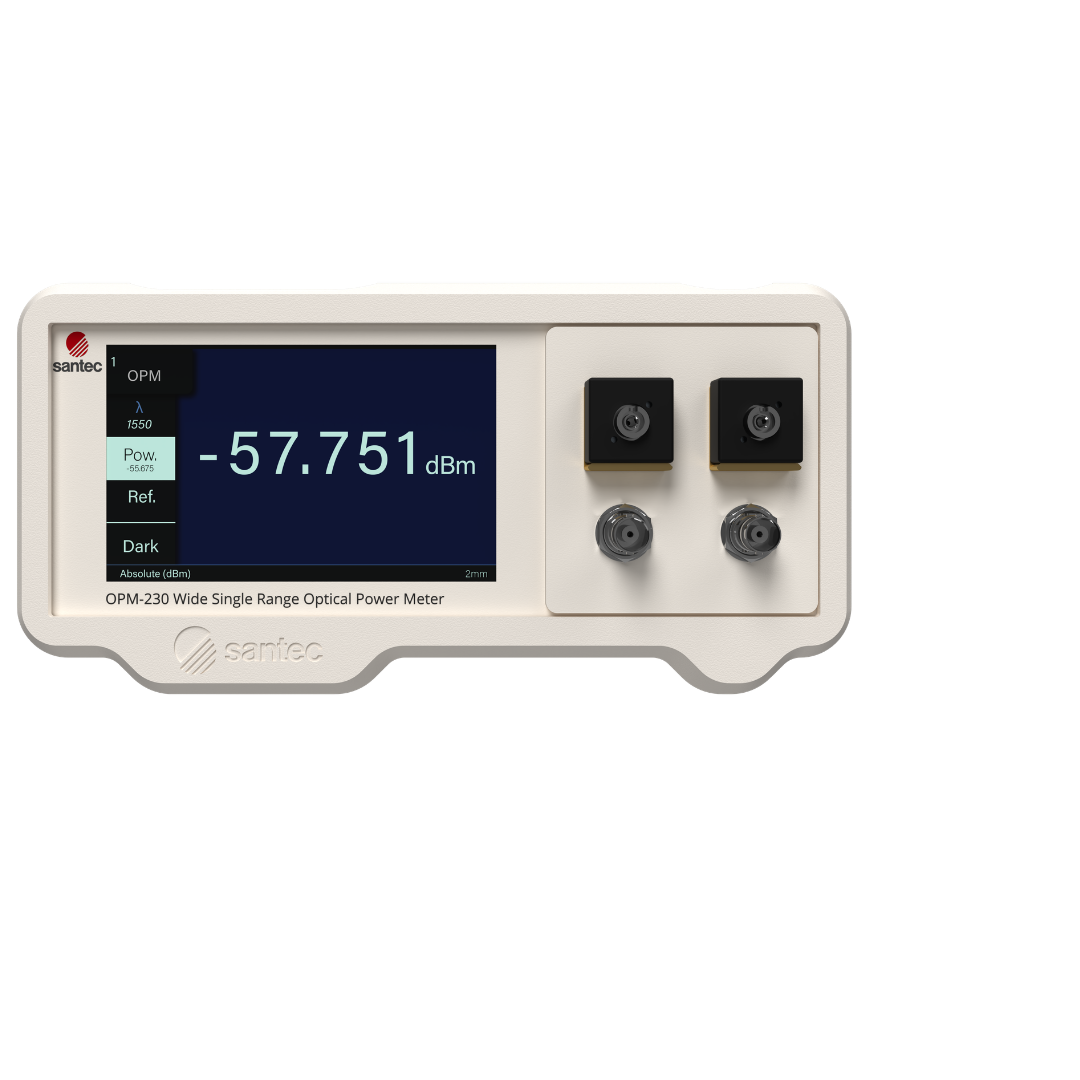

OPM-230 |
|---|---|---|---|---|
|
Multichannel |
High-speed & Multichannel |
High Performance |
Wide Gain Range |
|
 |
 |
 |
 |
|
|
Datasheets |
||||
|
InGaAs Detector (850-1650 nm) |
✔️ |
✔️ |
✔️ |
✔️ |
|
Silicon Detector (400-1100 nm) |
✔️ |
✔️ |
|
|
|
Power Range (dBm) |
1mm InGaAs 6 to -72 dBm
3mm InGaAs 3 to -72 dBm
5mm InGaAs 0 to -65 dBm
10mm InGaAs 0 to -55 dBm
2mm HP InGaAs 27 to -45 dBm
3mm Si 0 to -65 dBm
10mm Si 3 to -50 dBm |
1mm InGaAs 6 to -72 dBm 2mm HP InGaAs 24 to -40 dBm 3mm Si 3 to -65 dBm |
2mm InGaAs 6 to -80 dBm Integrating sphere 30 to -50 dBm |
2mm InGaAs 10 to -75 dBm |
|
70+ dB Gain Stage |
|
|
|
✔️ |
|
USB |
✔️ |
✔️ |
✔️ |
✔️ |
|
Touch Screen |
✔️ |
✔️ |
✔️ |
✔️ |
|
Averaging Time |
10-30 ms |
8 μs |
50 μs |
50 μs |
|
Max channel count |
24 |
24 |
4 |
4 |
|
Ethernet |
✔️ |
|
✔️ |
✔️ |
|
Trigger |
|
|
✔️ |
✔️ |
|
Analog output |
|
|
✔️ |
✔️ |
|
|
Compare OPM models
Get help choosing. Chat with a Specialist >
|
Features |
|
|---|---|
|
InGaAs Detector (850-1650 nm) OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
✔️ ✔️ ✔️ ✔️ ✔️ |
|
Silicon Detector (400-1100 nm) OPM-110 OPM-150 OPM-160 |
✔️ ✔️ ✔️ |
|
Power Range OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
(6 to -72 dBm) (6 to -72 dBm) (6 to -72 dBm) (6 to -80 dBm) (10 to -75 dBm) |
|
70+ dB Gain Stage OPM-230 |
✔️ |
|
USB
OPM-150 OPM-160 OPM-200 OPM-230 |
✔️ ✔️ ✔️ ✔️ ✔️ |
|
Touch Screen OPM-150 OPM-160 OPM-200 OPM-230 |
✔️ ✔️ ✔️ |
|
Averaging Time
OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
50ms 10-30ms 8 μs 50 μs |
|
Ethernet OPM-150 OPM-200 |
✔️ ✔️ ✔️ |
|
Max channel count OPM-110 OPM-150 OPM-160 OPM-200 OPM-230 |
1 24 24 4 4 |
|
Trigger OPM-200 OPM-230 |
✔️ ✔️ |
|
Analog output OPM-200 OPM-230 |
✔️ ✔️ |
