How to reduce mechanical misalignment and grating coupler alignment error

Mechanical misalignment directly affects wafer-level optical coupling. In non-contact optical probing, the relevant variables are not contact force but lateral position, angular alignment, working gap, scan repeatability, and FAU flatness relative to the wafer surface. For grating coupler alignment, a small Z or angular error can move the measurement outside the intended coupling condition.

The problem becomes harder when several ports must be aligned at once. A single-channel optimum may not be the array optimum, and a mechanically acceptable position for one port may place another port close to a coupling slope. The uncertainty budget must therefore account for port-to-port alignment gradients, not only global alignment error.

• Use automated optical alignment routines when manual or static alignment cannot maintain repeatability.
• Track coupling statistics per port, not only total transmitted power.
• Evaluate alignment repeatability over wafer maps and shifts, not only during setup.

How to control vibration and environmental coupling at the wafer interface

Factory vibration differs from laboratory vibration. Floor motion, adjacent equipment, wafer handlers, acoustic coupling, and motion stages can modulate the optical interface during acquisition. Sub-micron motion can become visible in insertion loss, particularly with dense fiber arrays and short integration windows.

Environmental coupling is intermittent and load-dependent. It may not appear during a short acceptance test but can emerge when the tool is placed near production equipment or when the motion sequence changes.

• Measure during settled mechanical states unless synchronized acquisition is intentionally used.
• Avoid interpreting vibration-induced variance as device non-uniformity.
• Verify integration time against the actual disturbance spectrum of the installed tool.

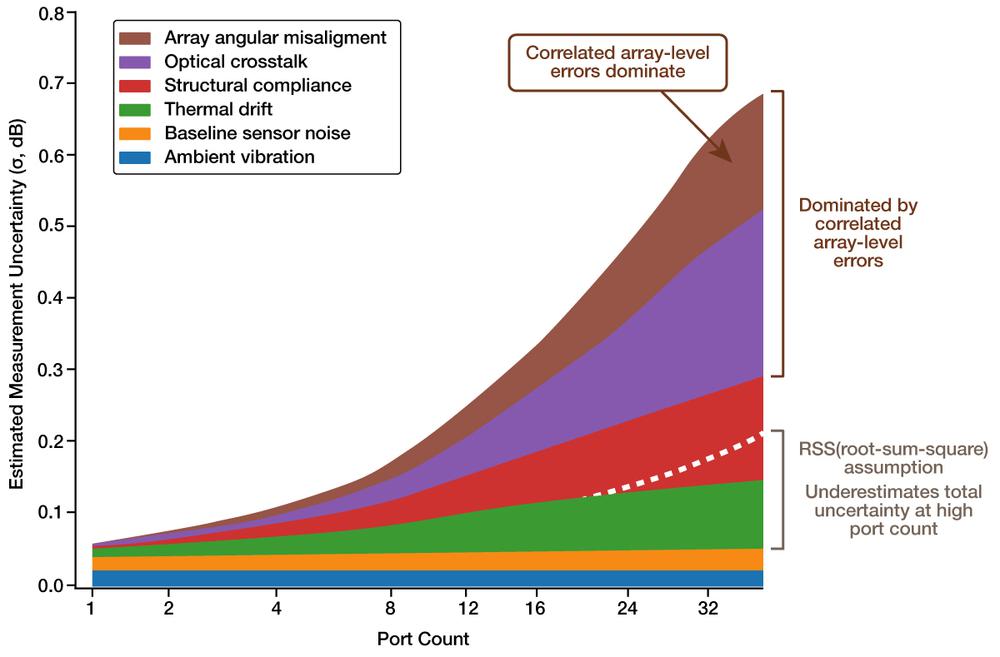

Why multi-port PIC probing errors do not add linearly

In a simple uncertainty budget, independent contributors can be approximated by root-sum-square addition. Multi-port wafer-level optical testing rarely satisfies that condition. Thermal drift, FAU misalignment, source variation, polarization changes, and optical crosstalk often affect several ports at the same time, creating correlated errors.

As port count increases, a small common-mode shift can move many measurements together. That is why a component-level specification can look acceptable while the full test cell produces unstable manufacturing decisions.

• Separate common-mode drift from per-port variation.
• Prefer simultaneous or tightly synchronized multi-channel acquisition when port-to-port correlation matters.
• Use reference channels to identify source and path drift before attributing trends to the wafer.

How Many Optical Ports Can Be Tested in Parallel Before Uncertainty Wins?

How optical crosstalk affects multi-channel FAU probing

Optical crosstalk becomes a limiting mechanism as more ports are measured simultaneously. It can arise from proximity effects in fiber arrays, shared optical paths, imperfect isolation, reflections, and leakage between adjacent waveguides or fibers. In manufacturing, this produces correlated port errors rather than isolated channel noise.

Crosstalk matters most near decision boundaries. A small leakage term can distort insertion loss or optical power enough to change a borderline pass/fail decision, especially when adjacent channels have significantly different power levels.

Why thermal and optical coupling increase with port count

Parallel testing increases the density of optical paths, electronics, fixtures, and acquisition channels. Heat from nearby electronics or optical dissipation can create channel-dependent drift across an array. At the same time, lateral or angular error across the FAU can appear as a systematic power gradient.

Beyond a certain port count, adding channels no longer reduces total test time proportionally. The added verification, alignment recovery, and uncertainty management can dominate the expected throughput gain.

Mechanical limits of FAU and silicon photonics wafer prober design

The mechanical limit of a high-port-count wafer-level test is set by array pitch, head stiffness, flatness, stage repeatability, and the ability to maintain stable working gap across all active channels. Software can compensate for some repeatable offsets, but it cannot eliminate physical gradients that change during operation.

• Large arrays require array-level alignment, not only center-channel alignment.
• FAU flatness and angular repeatability become direct uncertainty contributors.
• Calibration cannot fully remove drift that changes between calibration and measurement.

Why parallelization is not only a throughput strategy

In wafer-level PIC manufacturing, parallelization is often dictated by the DUT. Many devices expose multiple co-dependent optical ports that must be measured in one test instance to understand the device state. Throughput improvement is a useful consequence, but it is not always the primary reason for multi-port testing.

The practical question is therefore not “how many ports can the instrument support?” It is “how many ports can be measured before correlated uncertainty, recovery time, and alignment verification degrade the manufacturing decision?”

How Fast Can You Test Before Measurement Validity Breaks?

How integration time changes precision and false yield loss

Integration time controls the trade-off between speed and measurement precision. Short integrations increase throughput but raise susceptibility to detector noise, transient coupling changes, vibration, and source drift. Long integrations improve precision but reduce capacity and can average over changing states.

The correct integration time is therefore process-dependent. It must be selected against decision margin, coupling stability, environmental disturbance, and required confidence, not only against instrument noise floor.

How alignment tolerance affects test cycle time

Alignment routines consume a large portion of wafer-level test time. Tight alignment targets improve coupling but can increase search time, convergence time, and verification time. In production, the goal is repeatable alignment within the decision margin, not necessarily the absolute maximum optical power at every site.

Overly aggressive alignment can reduce net throughput without improving yield confidence. Under-aggressive alignment produces unstable IL and optical power data. The useful operating point lies between those extremes.

How to map manufacturing tolerance to measurement speed

Manufacturing tolerances define the allowed measurement uncertainty for pass/fail decisions. Measurement speed must be chosen so combined uncertainty remains below that tolerance with enough margin to cover drift and environmental variation.

• Start from allowable pass/fail uncertainty, not from maximum instrument speed.
• Include coupling repeatability, source stability, detector stability, synchronization, and calibration drift.
• Validate the selected speed under production-like duty cycle.

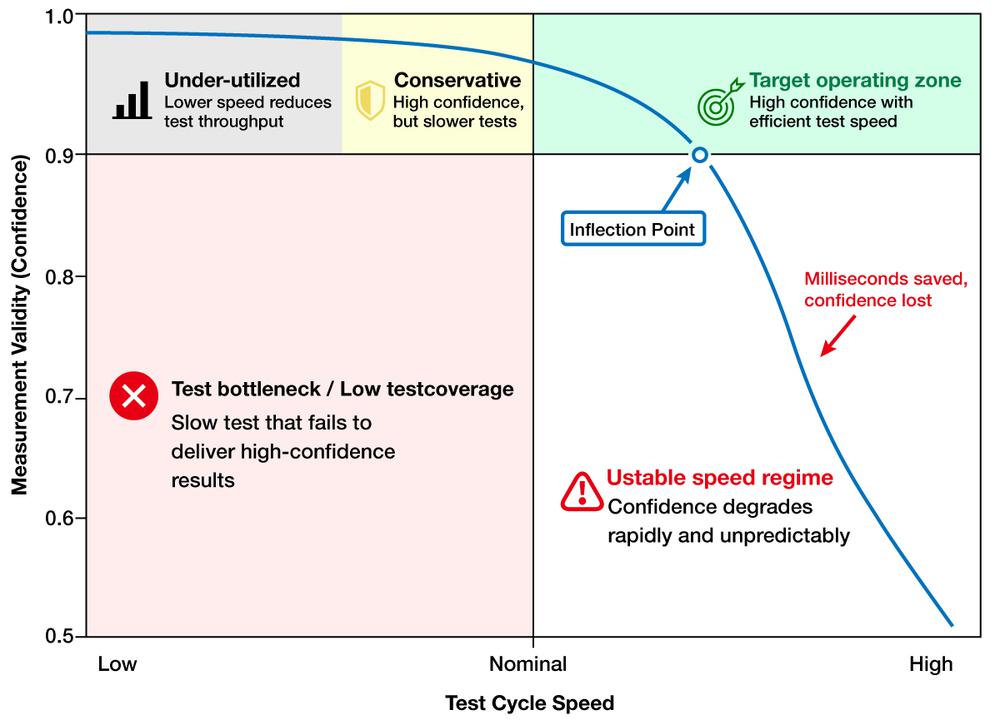

How to identify accuracy breakpoints under production constraints

Accuracy breakpoints occur when a small increase in speed causes a disproportionate loss of measurement validity. The breakpoint may come from insufficient settling, shorter integration, unstable alignment convergence, thermal drift, or timing mismatch between motion and acquisition.

A sustainable test sequence operates below the breakpoint. Operating beyond it can temporarily improve apparent throughput while degrading long-term yield stability and increasing retest burden.

How to Improve Wafer-to-Package Correlation

Why wafer-level and packaged-device data diverge

Correlation between wafer-level and packaged-device measurements is critical for screening. Divergence arises because wafer probing and packaged testing use different coupling conditions, thermal environments, mechanical constraints, and sometimes different polarization states.

Weak correlation does not always mean wafer data are useless. It often means the wafer test system is adding uncontrolled variation that hides the relationship between wafer metrics and packaged performance.

How coupling efficiency variation creates screening errors

Coupling efficiency changes substantially between wafer probing and packaged interfaces. A die that appears marginal at wafer level may perform acceptably after packaging, while a die that passes wafer screening may fail later if the wafer test did not capture the relevant mode or polarization condition.

Thresholds must therefore be set with knowledge of coupling-state variation and its correlation to downstream performance, not as direct translations of packaged insertion loss limits.

How statistical methods improve wafer-to-package prediction

Regression, correlation analysis, and multivariate classification can improve wafer-to-package prediction when the wafer-level measurement is stable. These methods combine several wafer metrics into a decision model and can reveal trends that single thresholds miss.

Their weakness is sensitivity to measurement drift. If the wafer data set contains uncontrolled coupling or calibration variation, statistical models learn the test system as much as the device population.

How weak correlation creates hidden yield loss

Weak correlation creates hidden yield loss through false rejects and false accepts. The cost becomes visible downstream, after packaging or system integration, when corrective action is more expensive. Increasing wafer-test speed does not solve this problem if the underlying correlation remains weak.

What Optical Instruments Must Survive in Production Mode

6.1 How continuous operation changes measurement stability

Optical instruments behave differently under continuous production duty cycle than during short laboratory checks. Thermal loading, component aging, wavelength sweep repetition, optical path changes, and environmental exposure can produce drift only after hours of operation.

Production validation must therefore include long-run behavior. A short benchmark can confirm capability but cannot prove shift-level stability.

How to manage calibration drift under high-throughput conditions

Calibration drift introduces systematic bias across large data sets. In high-throughput operation, recalibration opportunities are limited, so drift monitoring must be built into the measurement strategy rather than treated as occasional maintenance.

• Use reference signals to detect source and path drift.
• Track detector response and optical path state over time.
• Define recalibration intervals from production evidence, not calendar habit alone.

Why warm-up and settling time belong in the test recipe

Warm-up and settling behavior affects repeatability after power cycling, configuration changes, wafer transitions, or maintenance events. Early measurements after a change may differ from steady-state measurements, producing artificial shifts in wafer data.

A production test recipe should specify when the instrument and optical path are considered settled. Otherwise, transient behavior becomes an uncontrolled uncertainty source.

How Automation Sequencing Creates or Reduces Test Variability

How motion control settling affects optical measurement repeatability

Motion control defines where the optical interface is when acquisition begins. If residual motion remains after a move, the measurement captures a transient coupling state rather than the intended settled state. This increases variance even when the optical instruments are stable.

How test sequencing changes thermal and mechanical stability

Sequence order affects thermal load distribution and mechanical settling. Repeated move-measure cycles can accumulate local heat, while scan patterns that revisit adjacent sites can reinforce drift. A move, settle, measure sequence behaves differently from overlapped motion and acquisition.

• Use deterministic sequencing for production recipes.
• Validate scan order against thermal drift and retest statistics.
• Avoid changing sequence order without rechecking uncertainty and correlation.

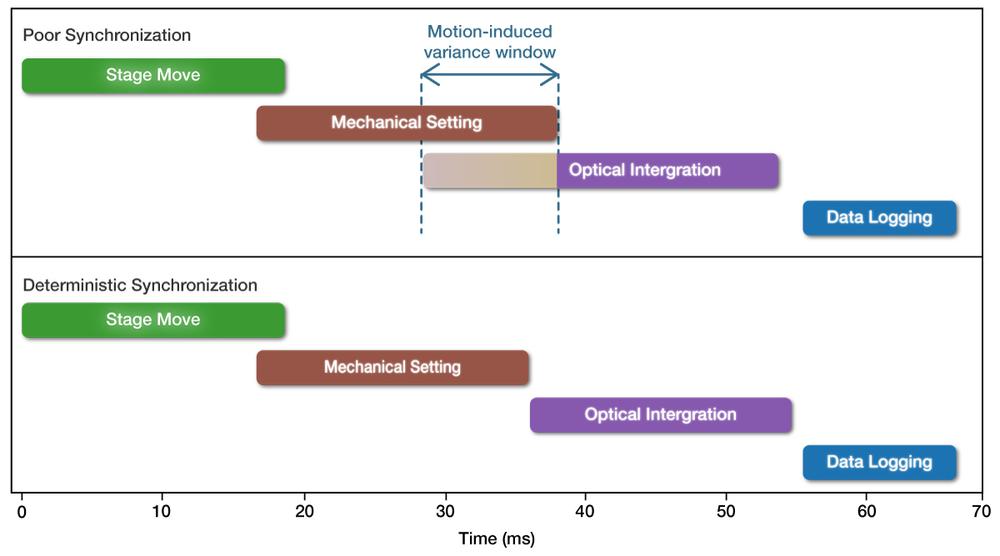

Why optical and mechanical subsystems must be synchronized

Synchronization errors create measurements taken during the wrong mechanical or optical state. As throughput increases, the margin between motion completion, source state, detector acquisition, and software logging shrinks. Deterministic coordination is essential for repeatability.

How to Maintain FAU Coupling Repeatability Under Factory Conditions

How fiber array coupling repeatability affects wafer-level PIC probing

FAU coupling repeatability depends on stable non-contact coupling to the wafer. Variability in standoff distance, lateral position, and angular alignment directly changes measured insertion loss and optical power. This is why grating coupler alignment and edge-coupling setup must be treated as manufacturing variables, not setup details.

How mechanical and thermal coupling mechanisms shift the optical interface

Differential expansion and structural compliance create coupled mechanical and thermal behavior. The same tool can behave differently across shifts, wafer lots, or facility locations if environmental conditions and operating history change.

How alignment drift accumulates over test cycles

In non-contact optical probing, alignment drift accumulates through gradual mechanical settling, fixture creep, thermal variation, and changing interface cleanliness, rather than through deliberate physical contact. Small changes in standoff or angular alignment shift measurement baselines over time.

How Test Uncertainty Causes False Fail and False Pass Decisions

How measurement uncertainty contributes to yield loss

Measurement uncertainty causes yield loss when it approaches the manufacturing tolerance. A die near the pass/fail threshold can change classification because of test-system variation rather than device performance. Across large volumes, small uncertainty growth becomes visible as false yield loss.

How to set guard bands without hiding process capability

Guard bands reduce false passes by tightening acceptance criteria, but they increase false fails. Excessive guard banding can hide the true process capability by converting test instability into apparent process weakness.

• Guard bands should be based on measured system-level uncertainty.
• They should be reviewed when the test recipe, tool, FAU, source, detector, or sequence changes.
• They should account for correlated multi-port behavior, not only independent noise terms.

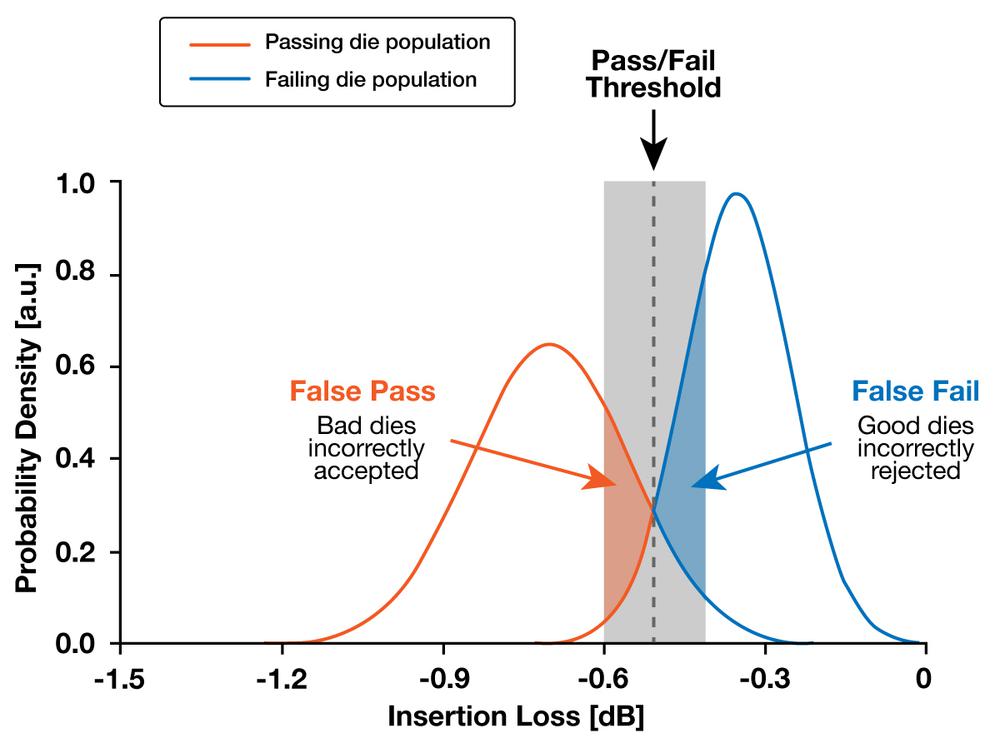

How to quantify false fail and false pass risk

False fails reduce usable yield; false passes propagate marginal devices downstream. Quantifying both requires stable test behavior and realistic uncertainty estimates. Without this, manufacturing decisions rely on assumptions rather than evidence.

Practical Boundaries for Scalable Wafer-Level PIC Testing

How to find the maximum reliable parallelization level

The maximum reliable level of parallelization is defined by system stability, not theoretical channel count. Beyond the reliable boundary, crosstalk, correlated drift, alignment recovery, and retest burden offset the benefit of simultaneous measurement.

How stability requirements impose speed limits

Stability requirements impose upper bounds on useful test speed. Sustainable speed is more valuable than peak speed because it preserves decision confidence across shifts and lots.

A trade-off framework for throughput versus measurement validity

A scalable wafer-level PIC test strategy should define throughput using the complete system: measurement uncertainty, alignment repeatability, thermal behavior, calibration state, port count, and pass/fail tolerance.

• Define the decision margin first.
• Measure system-level uncertainty under production-like duty cycle.
• Identify speed and port-count breakpoints experimentally.
• Select the operating point below the breakpoint, not at the theoretical maximum.
• Revalidate after hardware, software, sequence, or FAU changes.

Instrumentation Functions That Map to These Failure Modes

The goal is not to promote a single instrument as a universal answer. The correct architecture depends on the DUT, port count, coupling method, wavelength band, polarization sensitivity, and production constraints. However, the measurement functions below directly address the failure modes described in this paper.

Use this table as an engineering mapping layer. The technical requirement is always the same: choose instrumentation that reduces or isolates the uncertainty source before it reaches the manufacturing decision.
